XCE ELECTRICAL CONNECTOR

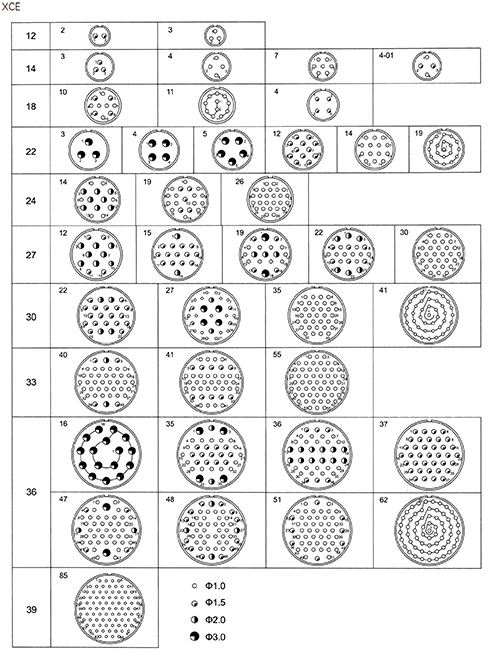

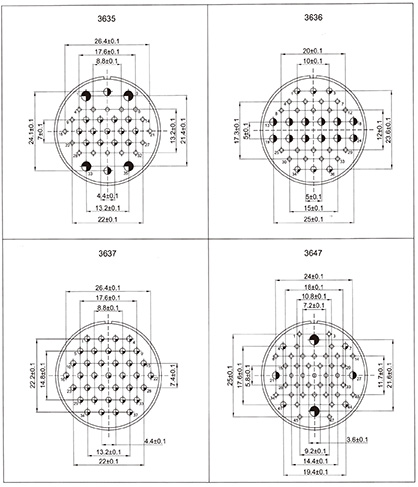

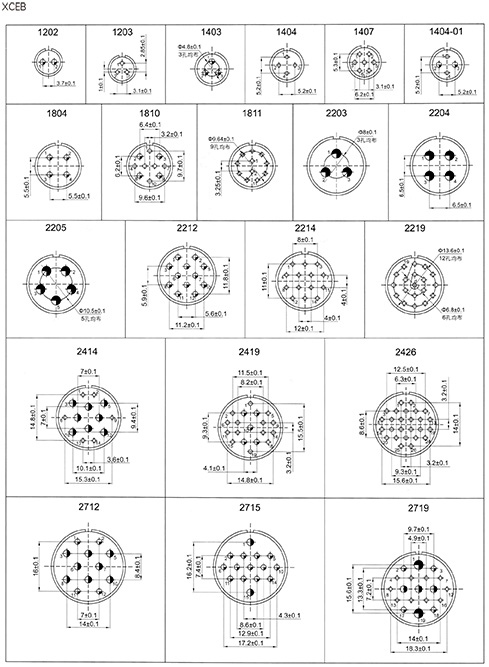

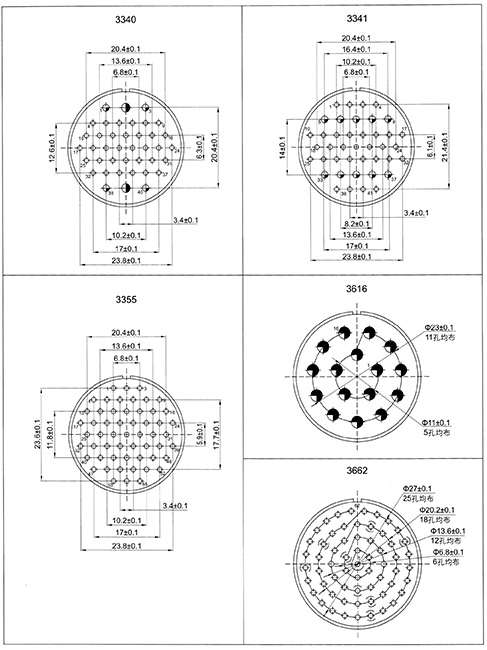

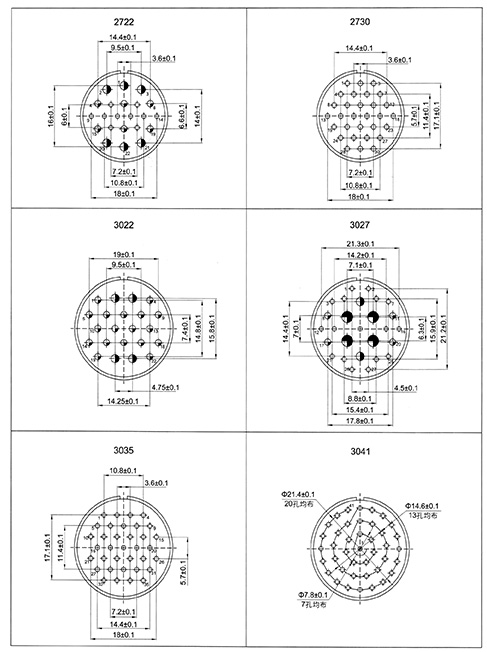

Features：
*Meets the MIL-C-26482 seriesⅠ
*Smaller spacing than XC series,same Electrical characteristics
*small size and light weight than XC series（same pin）
*A buckle type fast and safe connection
*Five keys have blind insertion function
*The end joint form is welding
*Plug, socket for both pins and holes
Main technical performance:
1.【Physical characteristics】
——Shell：High strength aluminum alloy
——Shell Coating：
Shield Coating：Army Green passivation，Chemical nickel plating
Non-Shield Coating：Black positive polarization
——Insulator：Thermoplastic materials
——Seal circle：silicon rubber
——contactor：Copper alloy gold plating
——Useful life：Plug 1000 times
2.【Electrical characteristics】
——Contact resistance and rated current
| Contact Specifications（mm） | Contact resistance（mΩ） | rated current （A） | Welding barrel inner diameter(mm) |
| φ1.0 | ≤5 | 5 | Φ1.2 |
| φ1.5 | ≤2.5 | 10 | Φ1.8 |
| φ2.0 | ≤1.25 | 20 | Φ2.5 |
| Φ3.0 | ≤0.75 | 40 | φ3.0 |
——voltage resistance， rated voltage
| Operating environment | rated voltage V | voltage resistance V |
| Room temperature | ≥500 | ≥1500 |
| Wet and hot | ≥500 | ≥1125 |
| Low pressure | ≥250 | ≥300 |
——Isolation resistance：MΩ
| Application Level | standard | High temp | Wet and hot |
| Isolation resistance | ≥5000 | ≥1000 | ≥100 |
3.【Environmental characteristics】
——Operating temperature：-55～200℃
——relative humidity:： 95%，40±2℃
——height：30000m
——Sinusoidal vibration： 10-2000Hz, 20g
——constant acceleration： 100g
——shock acceleration: 100g
——Anti-humidity，salt mist-proof，mildew-proof，rain-proof，dust-proof
