Features：
* Metric standard，Meets the GJB2905A-2004
*The socket is fitted with flange type, cable type
*push/pull electrical connector for reliable connection ,easy and fast connection and separation
*Vibration resistance，salt mist-proof,electromagnetic-proof
*Optional dust-proof，rain-proof，Hermetically sealed type
*It is widely used in the connection of electrical and electronic equipment such as  navigation, field communications, chariots, public transport power, post and railway command systems.
Main technical performance:
【Physical characteristics】
--Shell：aluminium alloy，stainless steel,navy yellow Copper
--rubber sealed socket：the leakage rate ≤ 1 pa.cm3/s


--acceleration：   100g
--shock acceleration:     100g
--Useful life：Plug 500 times
【Environmental characteristics】
--Operating temperature：-55℃~125℃
--Operating pressure ：1.33Pa～101.3kPa
--relative humidity: 92% -98%，Temperature at 40 ± 2℃
-- salt mist-proof：Y27、Y27A、B、C series：48h；
                Y27F、G、H series：aluminium alloy shell 96h；
                   stainless steel,navy yellow Copper shell 1000h
--under water：2m（only Y27F、G、H）
【Electrical characteristics】
Contact rated current(A)



 voltage resistance


【Y27series】

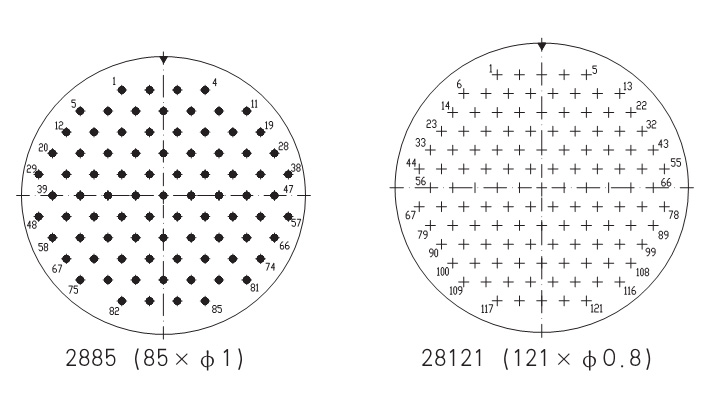

【Y27H series】
